Thermal Shock Resistance 250°C Cordierite Ceramics For Filtration And Separation

Name: Thermal Shock Resistance 250C Cordierite Ceramics For Filtration And Separation
Brand: HENGYUAN
Price: 1 USD

Quality Thermal Shock Resistance 250°C Cordierite Ceramics For Filtration And Separation for sale

Brand Name : HENGYUAN

Model Number : Cordierite Ceramics

Certification : CE,UL

Place of Origin : WUXI JIANGSU CHINA

MOQ : 100

Price : Negotiable

Payment Terms : Negotiable

Supply Ability : 5000 PCS/WEEK

Delivery Time : 20 DAYS

Packaging Details : Carton

Material : Cordierite Ceramics

Thermal conductivity : 1.3 W/m.k

Thermal Shock Resistance : 250°C

Volume Resistivity : >1012 ohm-cm

OEM，ODM : Acceptable

Orgin : WUXI JIANGSU CHINA

MOQ : 100 PCS

Package : Carton

Contact Now

Cordierite has low thermal expansion and high thermal shock resistance, making it suitable for use as a refractory material. Cordierite can also be used as a material for electronic devices due to its excellent dielectric properties.

Item	Test Condition	Unit&Symbol	Cordierite Ceramics
The main chemical ingredient			MgO, Al2O3,SiO2
Bulk Density		gm/cc	2.6
Maximum Use Temperature			1400℃
Hardness		HV	800
Bending Strength	20℃	Kgf/cm2	900
Compressive Strength	20℃	Kgf/cm2	3500
Fracture Toughness	K(I c)	Mpa m1/2	-
Thermal expansion		1X 10-6/℃	≤2.0
Thermal conductivity	25℃-30℃	W/m.k	1.3
Thermal Shock Resistance	Tc	℃	250
Dielectricity constant	1MHz.25℃		6
Dielectric strength		ac-kV/mm (ac V/mil)	10
Volume Resistivity	20℃	ohm-cm	> 1012

Thermal Shock Resistance 250°C Cordierite Ceramics For Filtration And Separation

Product Tags:

250°C Cordierite Ceramics

Filtration Cordierite Ceramics

Separation Cordierite Ceramics

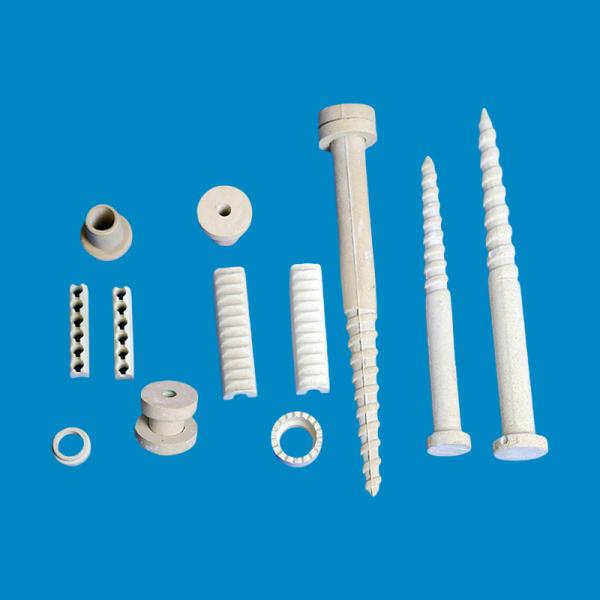

Thermal Shock Resistance 250°C Cordierite Ceramics For Filtration And Separation Images
